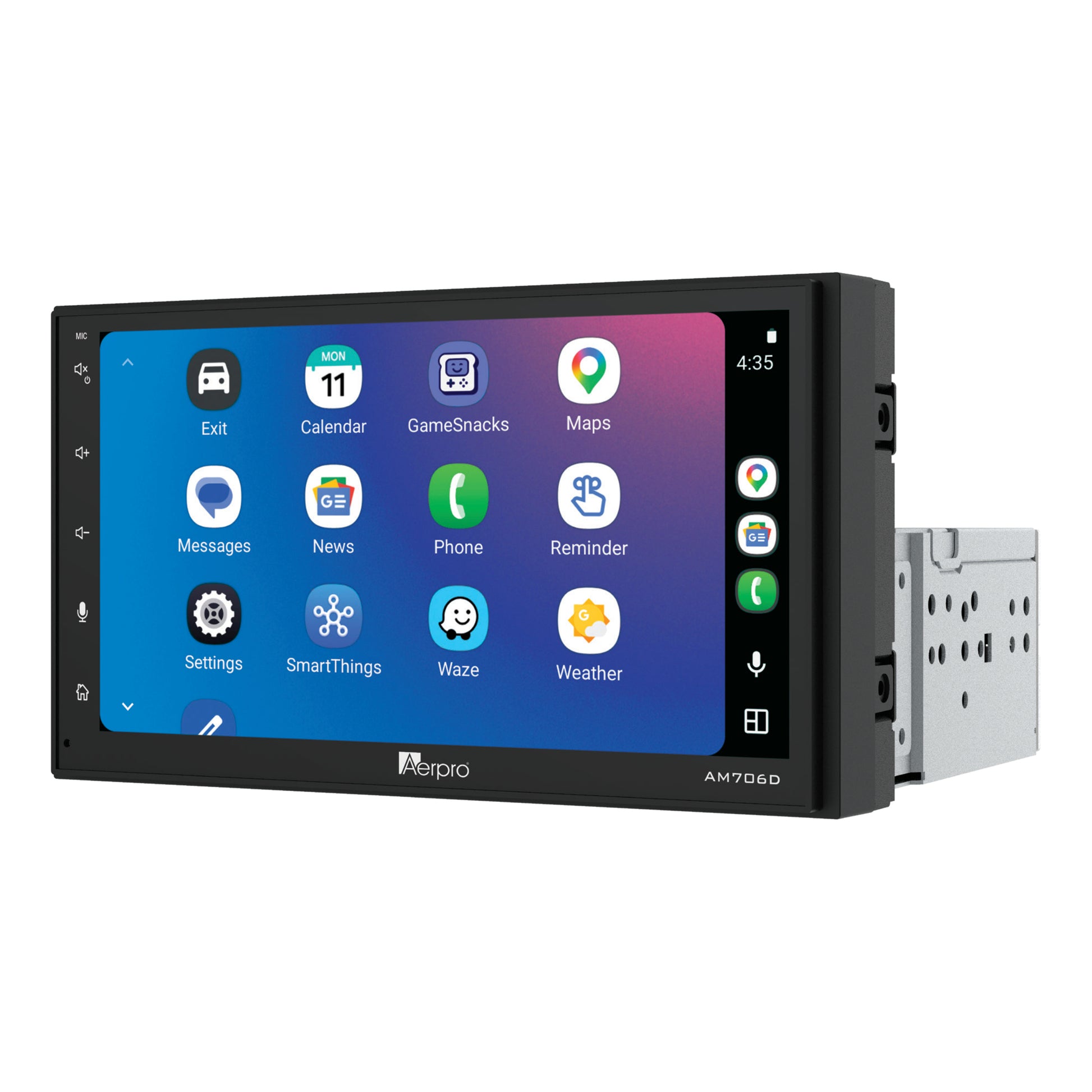

6.8" Multimedia Receiver with Wireless Apple Carplay & Android Auto AM706

Upgrade your dash with the latest Aerpro 6.8" Multimedia Double DIN Head Unit, built with an L-Chassis design for greater fitment flexibility, along with modern smartphone connectivity, DAB+ digital radio, and everyday driving convenience. Featuring a vibrant 6.8" capacitive touchscreen with a crisp 1024x600 resolution, it provides smooth, responsive control and a clear display for maps, media, and menus.

Enjoy the freedom of Wireless and Wired Apple CarPlay & Android Auto, giving you instant access to navigation, music, calls, and messages without the hassle of cables. Simply hop in and your phone connects automatically, or use the rear USB input for wired connection with charging support. It is the perfect solution for safer, smarter driving.

Stay tuned with built-in DAB+ digital radio, delivering crystal clear reception and access to a wider range of stations than standard AM/FM. Combined with Bluetooth V5 hands-free calling and audio streaming, HD Voice support, internal and external microphone options, and full phonebook and ID3 display integration, you will stay connected and entertained on every drive.

This unit also features Infolink Plus input capability, allowing integration with select OEM vehicle functions such as climate control display, parking sensor readouts, and factory gauges. Compatibility and available functions vary by vehicle and require the correct interface module, so check application-specific fitment before purchase.

Designed with safety and flexibility in mind, this unit features dual 720P AHD camera inputs, allowing you to add a reverse camera plus an additional front or towing camera. Whether parking, hitching a trailer, or navigating tight spaces, you will benefit from improved visibility and confidence behind the wheel.

For audio enthusiasts, the Aerpro delivers impressive sound performance with 4 x 50W max power and 6 x 4V RCA preouts for front, rear, and subwoofer outputs. Fine-tune your system with a 13-band EQ, time alignment, low-pass filter, loudness control, and dedicated subwoofer level adjustment, ensuring clear, balanced, and powerful sound tailored to your vehicle.

Built into an L-Chassis Double DIN body, this unit is shallow mount at the base with a clear upper chassis section, suiting vehicles where a standard double DIN chassis will not clear the dash cavity. It includes mounting hardware, ISO wiring harness, external microphone, and GPS antenna for straightforward installation. With USB media playback support for popular formats and customisable 6-colour button illumination to match your interior, it is a complete multimedia upgrade for vehicles requiring an alternate chassis profile.

Important Information:

• This unit uses an L-Chassis design. Confirm dash cavity clearance and chassis compatibility before purchase.
• Infolink Plus OEM function integration varies by vehicle and requires a compatible interface module (sold separately). Confirm compatibility before purchase.
• Most vehicles require a vehicle-specific facia kit and steering wheel control interface for proper installation (sold separately). Visit aerpro.com - What Fits My Car? - to find compatible accessories for your vehicle.

Features

• Vibrant Touchscreen Display: 6.8" capacitive touch display, ensuring a user-friendly interface for seamless control.
• L-Chassis Design: Shallow mount base chassis with a clear upper section, suiting vehicles where a standard double DIN chassis won't clear the cavity.
• Built-In DAB+ Digital Radio: Clear reception and access to more stations than standard AM/FM.
• OEM Integration: Infolink Plus supports select factory functions such as climate control, parking sensors, and gauges vehicle and module dependent .
• Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone.
• Bluetooth Hands-Free Calling & Audio Streaming: Keeps you connected and entertained without taking your hands off the wheel.
• Dual Camera Inputs AHD 720P Compatible : Add reverse, towing, or front cameras for extra safety and convenience.
• High-Power Audio with Advanced Tuning: 4 x 50W Max output, 6 x 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
• USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
• Multi-Colour Key Illumination: Easy-to-use controls with customisable lighting to match your interior 6 colour options .
• Personalised Display & Boot Screen: Choose from 12 selectable background themes and set your own custom startup image.

SPECS:

• LCD Display:
  • Size: 6.8"
  • Resolution: 1024x600
  • Touchscreen: Capacitive
  • LED Colour Buttons / Keys : 6-Colour Options Red, Yellow, Green, Blue, Purple, White
• OS System: Linux
• DIN Size: 2 DIN Body Double DIN, L-Chassis
• Power Output: 4CH x 50W 4 Ohm MAX Power
• Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
• USB Inputs:
  • USB1 Rear Apple CarPlay - Android Auto with Charging Function 5V / 1.5A
  • USB2 Rear : Media with Charging Function 5V / 1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input RCA Type - 3pcs : Yes
  • Composite Video Output: Yes
  • Reverse Camera Input: Yes 720P AHD Compatible
  • Second Camera Input: Yes 720P AHD Compatible
  • Infolink Plus Input: Yes OEM function integration, vehicle and module dependent
• Smartphone Connectivity: CarPlay & Android Auto Wireless and Wired
• Bluetooth:
  • Bluetooth Built-In: Yes A2DP, AVRCP, HFP, PBAP
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information Artist, Album, Song : Yes
  • HFP Profile 1.2, 1.4 or HD Voice 1.6 : HFP 1.6
• Tuner:
  • DAB+: Yes
  • AM/FM # of Presets : AM: 12 / FM: 18
  • FM Frequency Span MHz : 87.5-108.0MHz 0.05MHz Step
  • AM Frequency Span KHz : 522-1710KHz 9KHz Step
  • RDS: Yes
• RCA Preamp Outputs:
  • RCA Preamp Output: 4V, 6 RCA - 3 Pair Front/Rear/Subwoofer
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p
• Tone Control:
  • 13 Band EQ - 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF - Frequencies Sub : Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor Sold Separately
  • Infolink Plus Input: Yes
  • OSD Language: English
  • LED Colour Buttons / Keys : 6-Colour Options Red, Yellow, Green, Blue, Purple, White
  • Customisable Boot-up Screen: Personalise the radio with your own .JPG image on boot-up.
  • Wallpaper Selection: Choose between 12 preset wallpapers.
• Inclusions:
  • Double Din Head unit L-Chassis
  • Double Din Metal Frame & Mounting Hardware
  • Head unit Plastic Trim
  • Wiring Harness with ISO Connection
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • Glass mount DAB+ Antenna
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet
