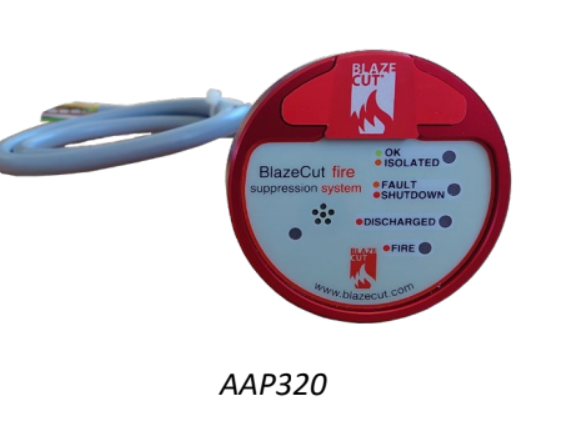

Blazecut Alarm Panel AAP320 kit with a test button for T and C Series KAAP320

The BlazeCut Alarm Panels AAP221 and AAP320 are a new generation of simple and effective control units which can be used for monitoring the complete range of BlazeCut Fire Suppression Systems. Being the heart of the system, this gives BlazeCut Fire Suppression Systems customized performance to protect all types of equipment.
The main difference between the AAP320 and AAP221 models, is a manual actuation button function on the AAP221 model and programmability on site. The AAP221 panel is supplied to systems using a solenoid valve (e.g., ILP valves 211) to secure electronic activation of the system. AAP221 comes with both a blanking cover
and a tamper seal to be used based on the preference usage of the activation button e.g. without activation button for systems where only automatic activation of the system is required (ILP valves 201, 202, 207). The AAP320 panel is simplified version of AAP221, with only 6 wire connections and can be used as separate fire warning system (e.g., DLP with one pressure switch; fire warning device with a detector). The alarm panel is
constantly monitored for faults.

Alarm panel with a disabled fire button for T and C Series, preconfigured from factory, OK, Fault and Fire
LED indication (automatic dimmer function), 9 - 48 V DC, 85 dB buzzer, IP67, -30°C to 70°C, CE, EMC tested,
integrated NO relay output, flush or external mounting, red anodized aluminium body, 65 mm diameter, 1 m

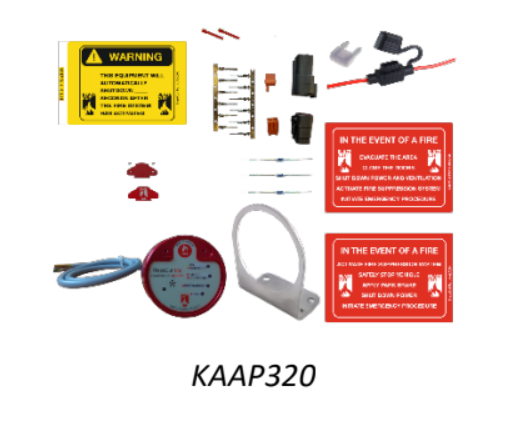

cable. Includes 3x End-of-line Resistor AER102, Case for a Fuse ACF003 and External Fuse AEF003.
Can be used for: T Series with a pressure switch, C Series with one pressure switch, and as a separate fire
warning system
Note: Non-programmable

 - durable anodized aluminium body suited for harsh environments
- small footprint design
- design allows for optional mounting; flush mounted in a dash or the external bracket - may be used to position the panel at any angle
- two integrated relays, for fire signalling output and equipment shutdown (delay can be programmed)
- integrated Wi-Fi module for wireless configuration/programming
- manual actuation button with tamper seal to prevent accidental discharge (AAP221 model)
- electromagnetic compatibility (EMC) and immunity testing in accordance with E/ECE/324 and EHK 10-04 multiple fault identifications
- delay discharge: option to setup time delay between detection/actuation and system - discharge (only available with ILP valves 211, 212)
- instant full range of pressure monitoring every second with Pressure Transducer ATA100
